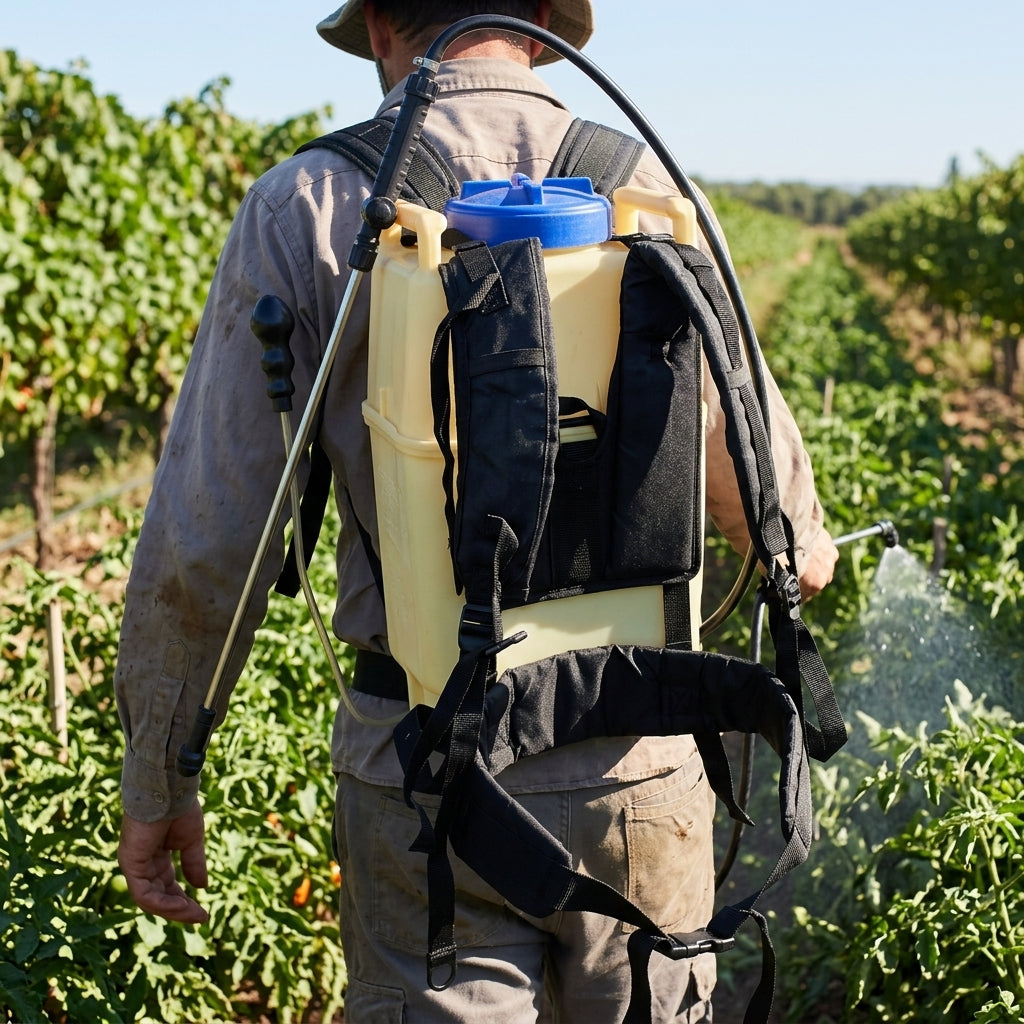

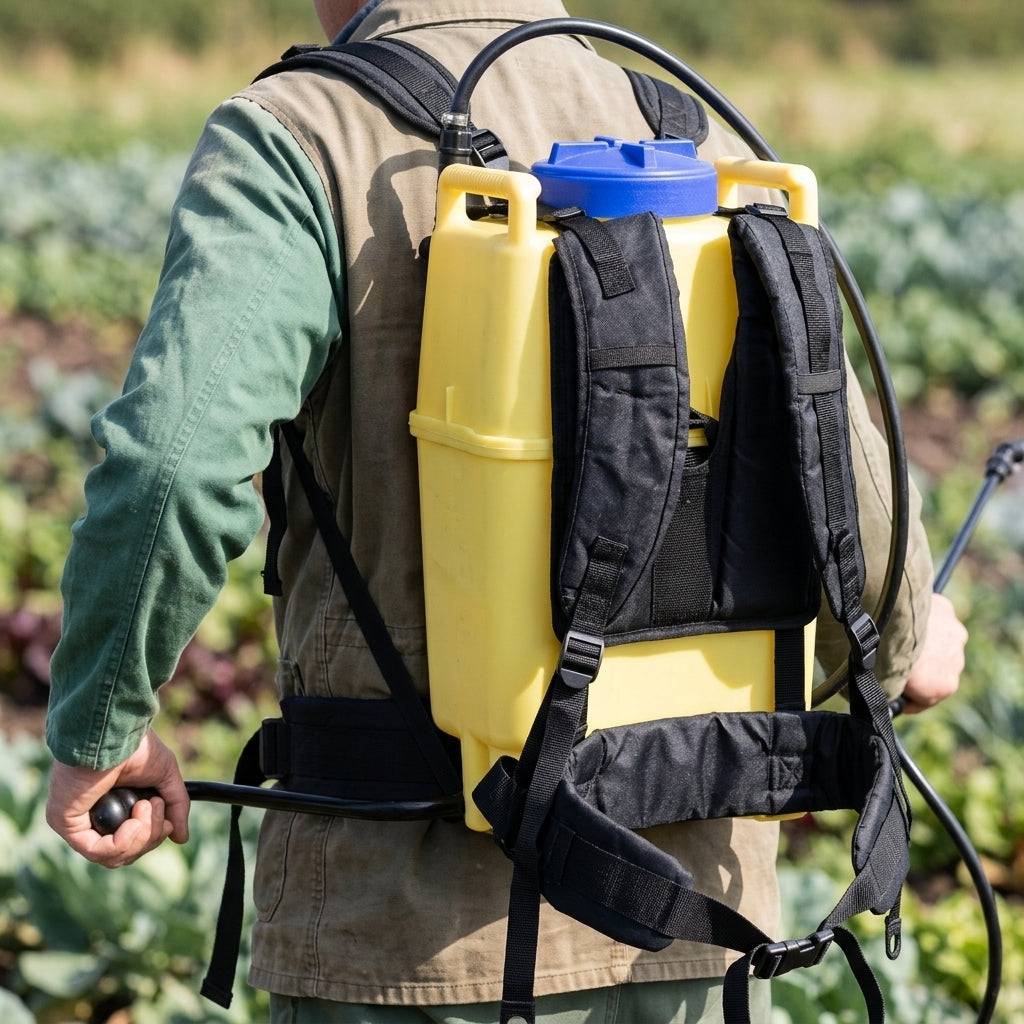

20L Knapsack Sprayer - Robust and Lightweight Design
SKU TCP845
Overview
This robust yet lightweight 20L knapsack sprayer has a UV stabilised polypropylene tank, two carrying handles and a safety harness. Its unique diaphragm pump and built-in pressure relief valve deliver long service life and precise, consistent crop protection.
Key Features
- Two carrying handles for greater comfort
- Unique diaphragm pump system for a long-lasting sprayer and suitable, precise protection of your crops
- Built-in pressure relief valve for precision
- Reinforced hose for greater pressure resistance
- Low mesh strainer to filter out dirt, plus an additional filter in the trigger
- Wide filler opening to prevent overflow
- UV stabilised polypropylene tank for a durable yet lightweight sprayer
- Adjustable reinforced lever for left- or right-hand operation
- Lid with separate seal and air vent for secure locking
- Pressure control valve with fixed settings for spraying herbicides/insecticides and fungicides
- High-resistance Glassfibre Reinforced Plastic lance
- Few moving parts for low maintenance and good resistance to dirt in the spray liquid
- Multi-nozzle adaptor
Optimised Safety Harness Design
- Adjustable straps with reinforced foam and tensioners that adapt to the user's body and protect the shoulders
- Chest strap keeps the sprayer stable and relieves lateral tension
- Adjustable waist strap lets the user spread the weight of the sprayer for stability
- Reinforced back support prevents direct contact with the tank for greater comfort
Applications
Supplied with two nozzles to suit different tasks:
| Colour | Volume (L/ha) | Characteristics |
|---|---|---|
| Yellow Hollow Cone | 140 | For plant protection. Produces light droplets, intended for use with insecticides and fungicides. |
| Green Anvil | 50 | For weedkilling. At low pressure the anvil nozzle produces a large droplet size, reducing the risk of drift. |
Specifications
| 20L Knapsack Sprayer with Safety Harness | |
|---|---|
| Tank Litres | 20L |
| Material | Polypropylene |
| Filler Neck | 140mm |
| Max Working Pressure | 3 bar (45 psi) |
| Total Weight | 4.75kg |
| Harness Material | Polyethylene pads with polyester fibre braiding and reinforced foam |
| Lance Length | 500mm |
| Hose Length | 1360mm |
What's included
- 20L knapsack sprayer with safety harness
- Reinforced hose and Glassfibre Reinforced Plastic lance
- Multi-nozzle adaptor
- Nozzles: Yellow Hollow Cone and Green Anvil
Notes
- Regular cleaning and maintenance are essential to keep knapsack sprayers durable and working properly for a long time.
- An instruction booklet covering how to use the sprayer is available.
- Compatible with matching multi-nozzle spray boom extensions.
