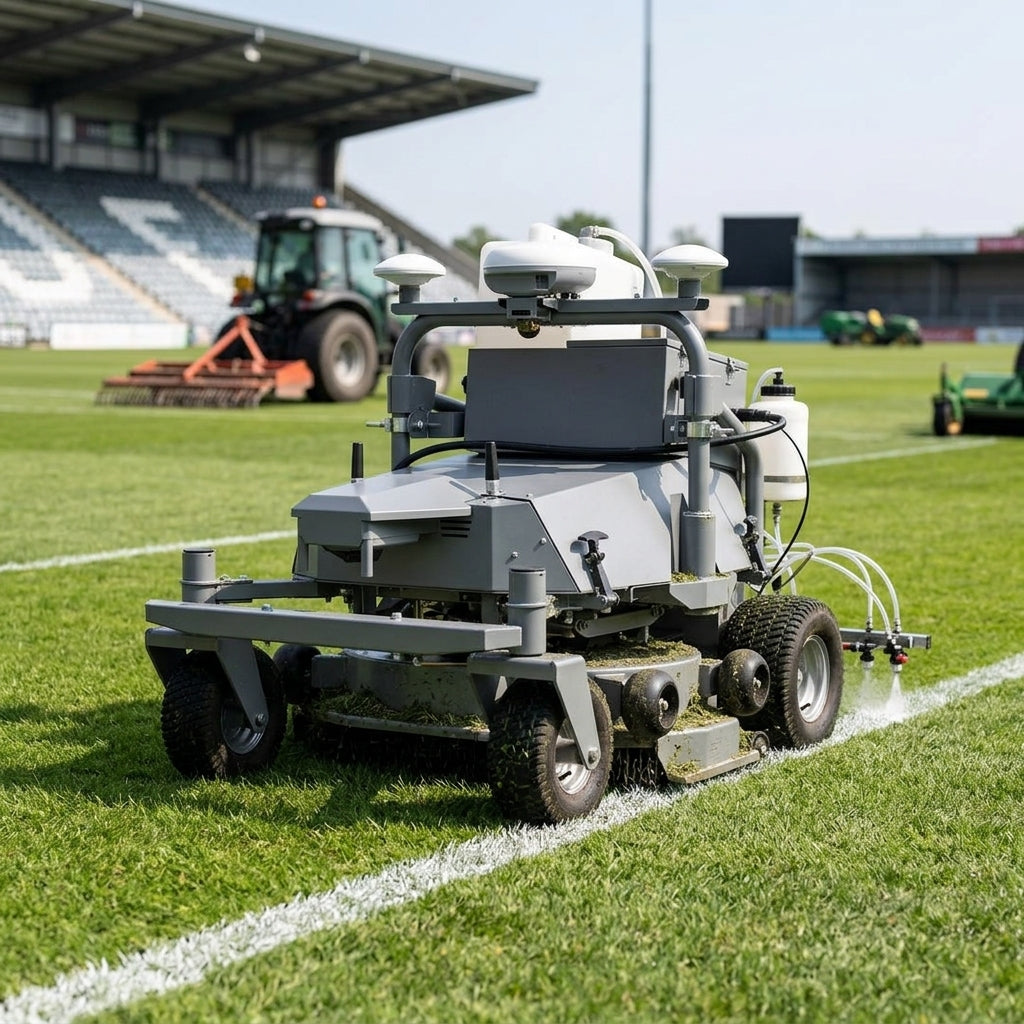

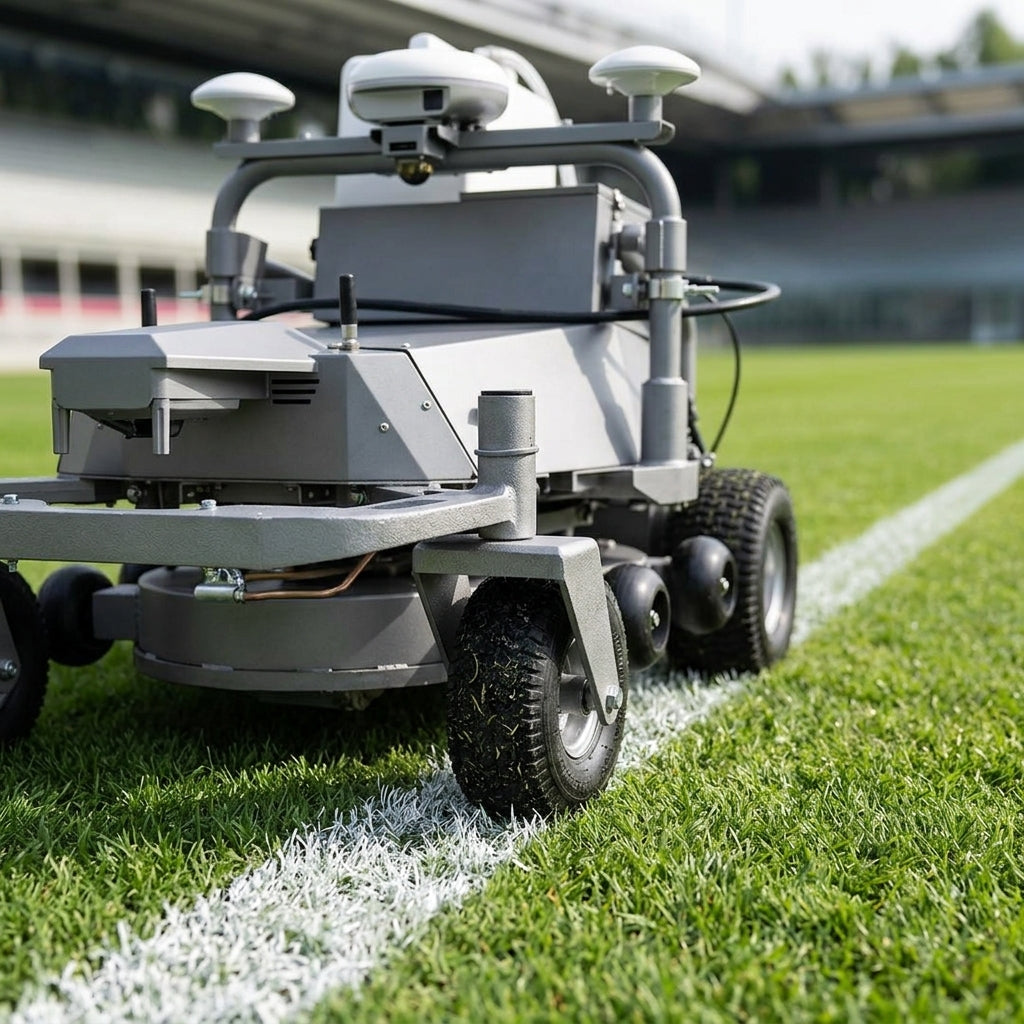

25in Grounds Robot Mower & Marker with Attachments
This is a fully autonomous grounds robot that both mows and marks lines, built for professional grounds care teams who need efficiency and dependability. The combo package comes with a 25in rotary mower, a line marker, a charging dock, a bespoke tablet loaded with all the software plans and a Radio RTK station for precise over-marking.
It can also be supplied as a mower only or as a line marker only. Optional attachments, including a grass/leaf collector/hoover and dispenser plus brushes for different jobs, simply fit onto the main unit.
Key Features
Precise, stable mowing
- Designed for many settings, including sports fields, golf courses and orchards
- Intelligent control system, pure electric drive and a large-capacity battery for maximum mowing efficiency, saving time, effort and cost
- Pure electric design means no oil leaks and no resulting grass damage
Protection and safety
- 360° real-time obstacle detection using LiDAR, with no blind spots and three selectable distance modes
- Collision bumpers and rain monitoring protect the machine for safe, trouble-free operation
- App control lets you operate the mower at any time, from anywhere
Reliable performance
- Returns automatically to its charging station when the battery runs low, with no manual intervention needed, greatly improving work efficiency
- Climbs slopes of up to 20°, coping with more complex and varied terrain
Line Marker Kit
Perfect sports field lines need a high-precision marker. The line marker comes as standard with a top-class navigation system that marks accurate lines in minutes and has an ultra-long battery life. With customisable maps and lines, it delivers excellent results on all your sports pitches, including football, rugby, lacrosse, American football, field and track, rounders, softball and baseball.
High precision from start to finish
A local base station supplies a stable signal so every line is marked exactly where it should be.
- Achieves the highest possible marking accuracy
- Very stable signal reduces the risk of drift
- Saves money by removing the need to buy extra NTRIP accounts
Lower costs, greater efficiency
- Cuts labour costs by up to 90%+
- Reduces paint use by about 50%+
- Marks 20 standard football fields (11v11) on a full charge
- Covers a wide range of sports fields, from football, rugby, American football and hockey to tennis and more
Intuitive, simple operation
- A range of built-in marking templates for quick and easy set-up
- Several map creation methods to suit different marking needs
- Finds the starting point automatically, with no manual intervention
- Resumes marking from where it stopped for a continuous workflow
Safe and reliable
Dual protection from 360° laser radar monitoring and physical anti-collision removes safety concerns about unmanned marking.
Applications
- Park lawns
- Sports fields
- Farm lawn
- Orchards
- Golf courses
- Landscaped lawns
Specifications
Mower
| Weight (with 2 batteries) | 375lb / 170kg | Ground Speed | 0-3.7mph / 0-6km/h |
|---|---|---|---|
| Dimensions | L52in (1330mm) x W34in (857mm) x H40in (1012mm) | Max Operations Area per Three Days | 22 Acres / 90,000 m²* |
| Number of Blades | 1 | Max Operations Area per Charge | 3.2 Acres / 13,000 m²* |
| Cutting Height | 0.8-5in/ 20-127mm | Average Working Time | 5 hours |
| Cutting Width | 25in / 63cm | Maximum Gradeability | ≤20° |
| Battery Capacity | 4kWh | Charging Time | 5 hours |
| Battery Voltage | 48 VDC | Waterproof | IPX4 |
| *Working area capacity varies with grass type, soil, cutting height and slope. | |||
Line Marker
| Line marker weight (no blade disc) | 157kg | Rated voltage | 48 V DC |
|---|---|---|---|
| Main unit + line marker weight (with blade disc) | 187kg | Rated power | 150 W |
| Speed | 2km/h | Rated current | 3 A |
| Paint capacity | 25L | IP Rating | IPX4 |
| Marking width range | 5-17cm | Est marking time per full charge | 5-6 hours |
| Nozzle height | 3-8cm | Working temperature | 5-35°C |
What's included
- Main unit with 25in rotary mower
- Line marker
- Charging dock
- Bespoke tablet with all software plans
- Radio RTK station
Notes
- Also available as a mower only or a line marker only
- Optional accessories include a grass collection kit, with further additions in development
