Convertible Linear 2 or 4 Wheel Aerosol Applicator

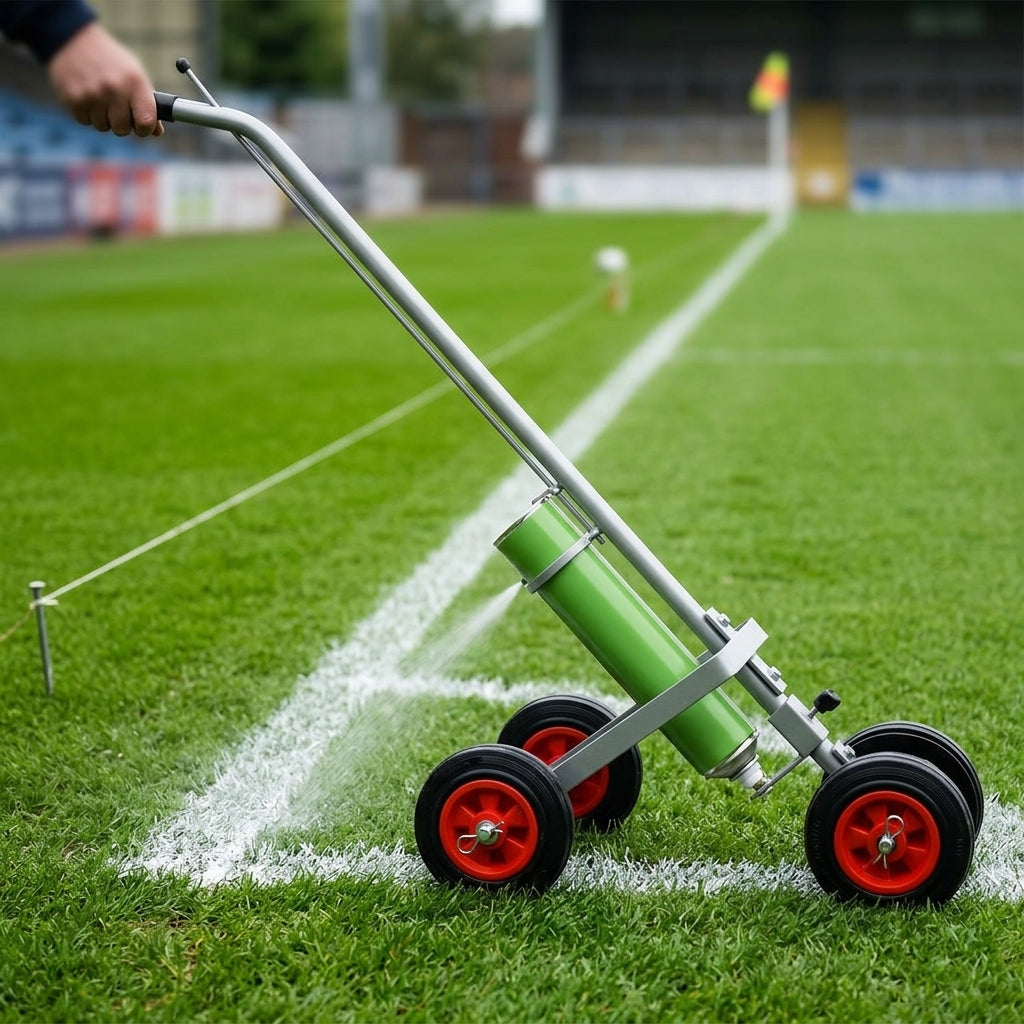

This convertible linear aerosol applicator marks a 50 mm (2 inch) wide line and can be set up with either two or four wheels. Run it on two wheels for tight curves and freehand marking, or fit the rear wheels to turn it into a four-wheel unit for straight lines.

Key Features

• Marks a line 50 mm (2 inch) wide
• Two-wheel set-up for tight curves and freehand line marking

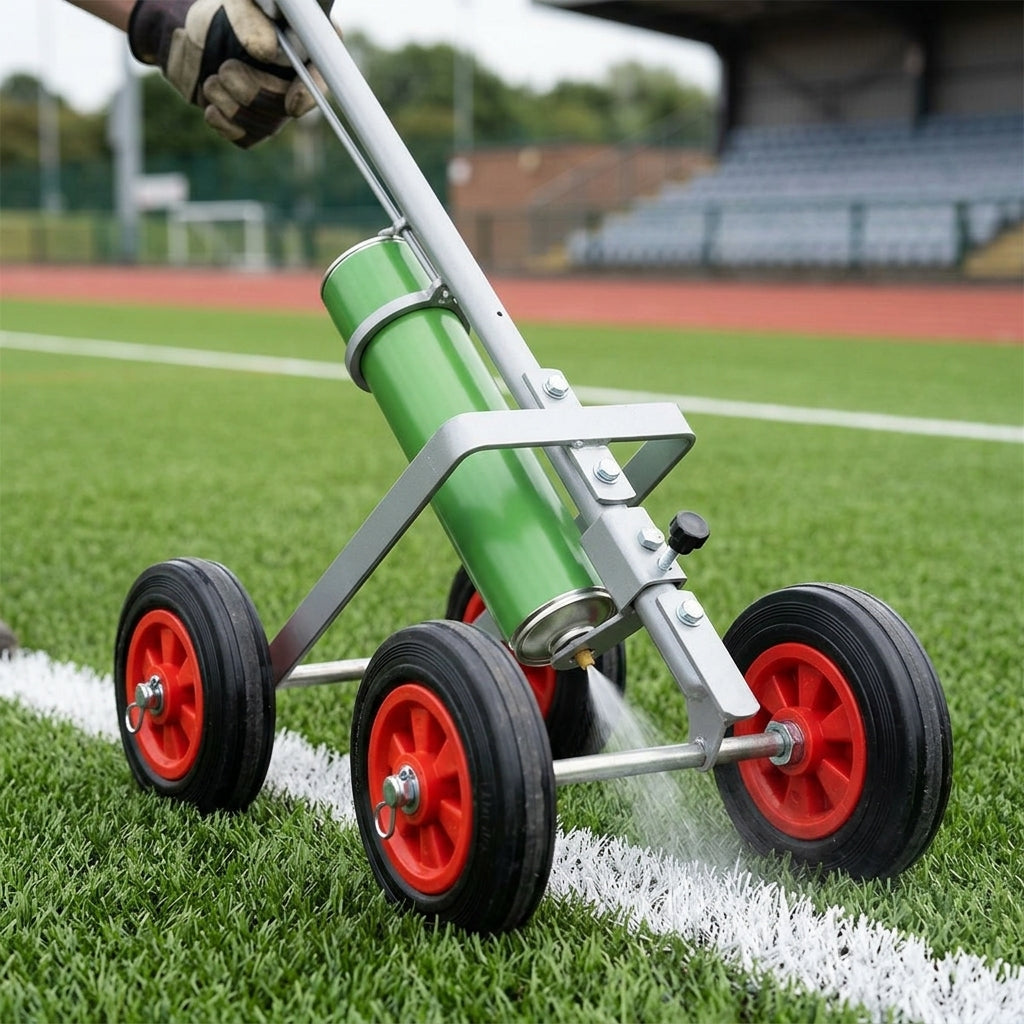

• Four-wheel set-up for marking straight lines, achieved by adding the rear wheels
• Rear wheel adaptor fixes to the handle using the two bolts provided
• Securing bracket swings left or right so the aerosol can be dropped through the securing ring
• Thumb trigger operation

How to Use

1. Swing the securing bracket round to the left or right and lower the aerosol through the securing ring.
2. Position the nozzle so it sits down into the hole in the spray plate.
3. When using line marking aerosols with a directional nozzle, set the directional groove on the nozzle horizontally, so it lies across the direction of spray.
4. Slide the securing bracket over the top rim of the can and hook it at the centre.
5. Press the thumb trigger to release the aerosol paint.

Applications

• Straight line marking (four-wheel mode)
• Lines with tight curves and freehand marking (two-wheel mode)

Specifications

• Line width: 50 mm (2 inch)
• Configuration: convertible, 2 or 4 wheels
• Weight: 3 kg

What's Included

• Two bolts for fitting the rear wheel adaptor to the handle
