Flat Fan Nozzles for Spraying Applications

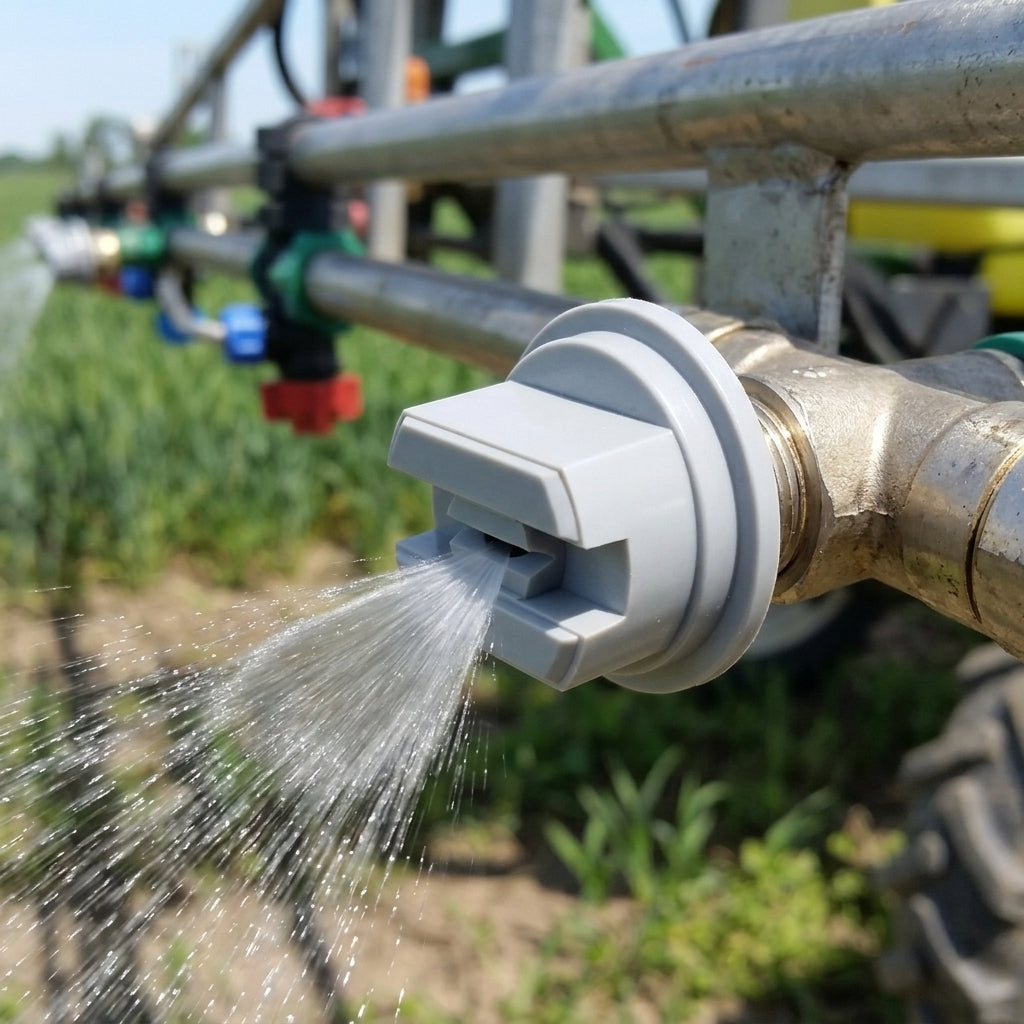

These tapered flat fan nozzles give a narrow, oval-shaped spray with tapering ends. More liquid is delivered at the centre of the pattern and less towards the edges, so they are intended to be overlapped with neighbouring nozzles along a spray boom.

Key Features

• Tapered flat fan pattern from an elliptical orifice
• Elliptical spray pattern with tapered edges, producing fine to medium droplets
• 110° spray angle
• Works across a 2 - 4 Bar pressure range
• Made for downward spraying in broadcast applications
• On a mini-boom, gives an even spread of spray 1 - 4 metres wide
• Colour-coded by nozzle size: Grey, White, Blue, Red, Brown, Light Blue, Green and Yellow

Applications

• Fine spray quality nozzles: broadcast applications of herbicides and insecticides
• Fine to medium spray quality nozzles: also suitable for fungicide and fertiliser applications
• Coarse spray quality nozzles: spot spraying of large weeds and broadcast spraying of biological pest controls

Specifications

Nozzle Sizes and Performance

Choose the size/colour you need from the options on this page.

Notes

• Application rates shown for each nozzle size are based on a forward speed of 15 km/h.
