Front Marker Spray Nozzle for Sports Field Marking

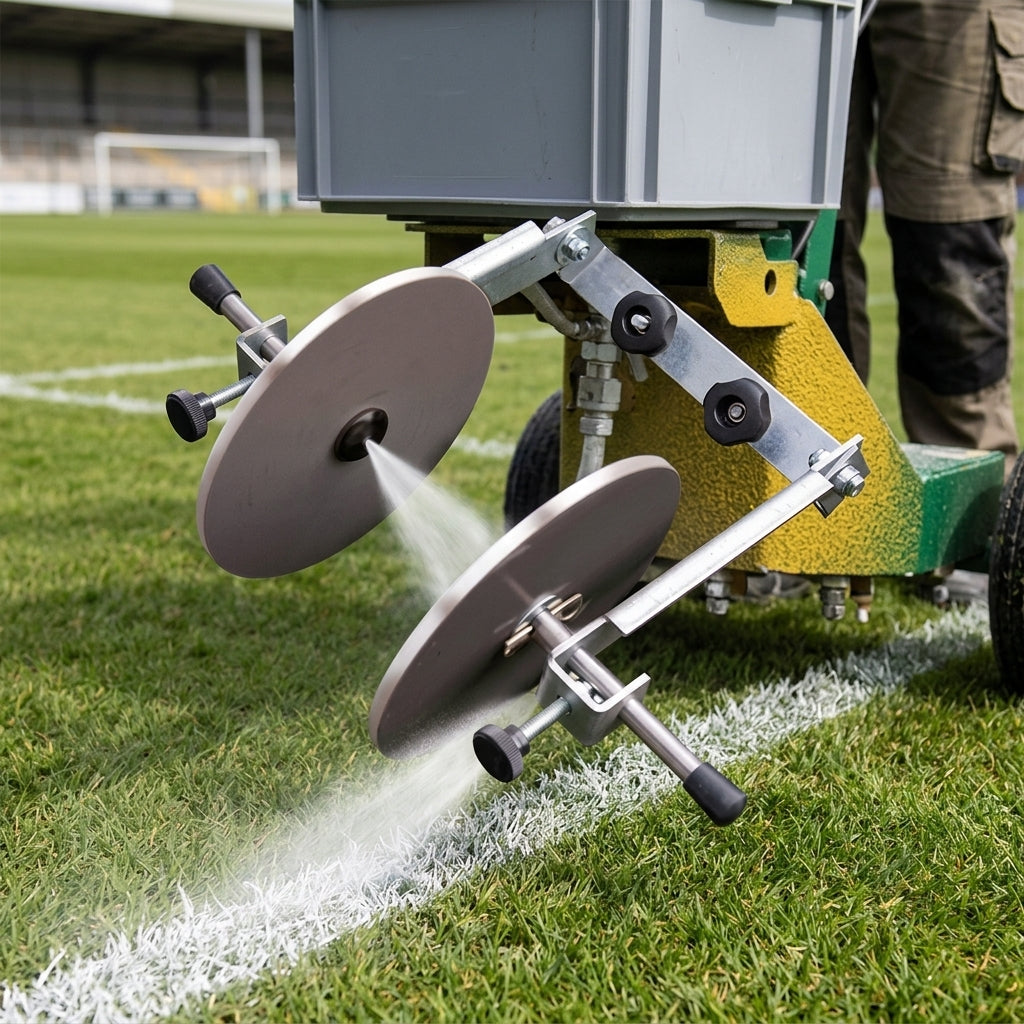

This front marker attachment mounts on the front of spray line marking machines. It travels with the machine as one unit, and its spray disc stays on the ground the whole time for a steady, even line.

Key Features

• Simple to fit
• Moves together with the machine as part of it
• Spray disc keeps contact with the ground at all times
• Line width fully adjustable from 7.5-12.5cm
• Discs clean easily once marking is finished

How to Use

To set the line width, loosen the 2 hand wheels on the front of the marker, slide the axles to the position you need, then lock them again. The discs can be set anywhere across the 7.5-12.5cm line width range.

Specifications

• Frame construction: flat metal plate and square form tube in zinc-coated galvanised steel
• Line width: 7.5-12.5cm (adjustable)
• Disc size: 6mm x 150 diameter
• Disc hole: 10.2mm
• Disc material: polypropylene
• Weight (boxed): 2kg
