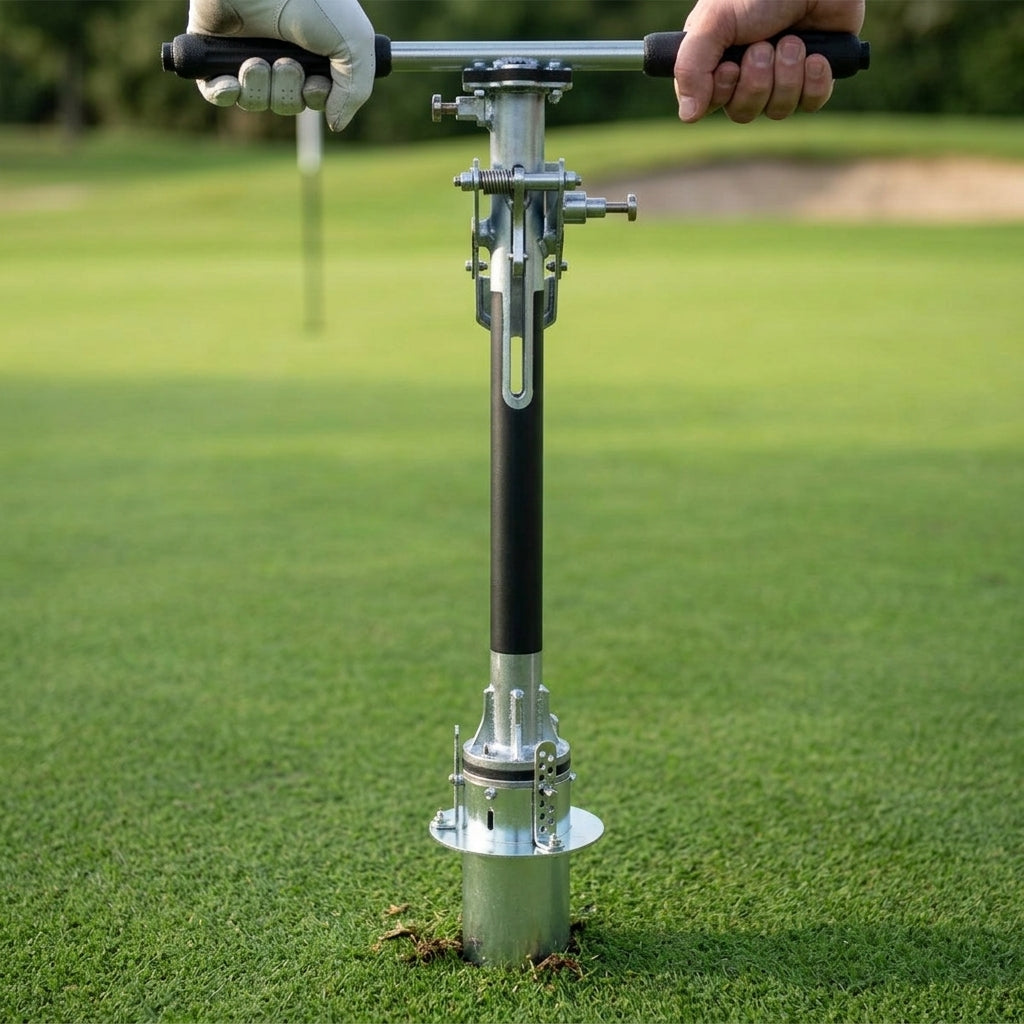

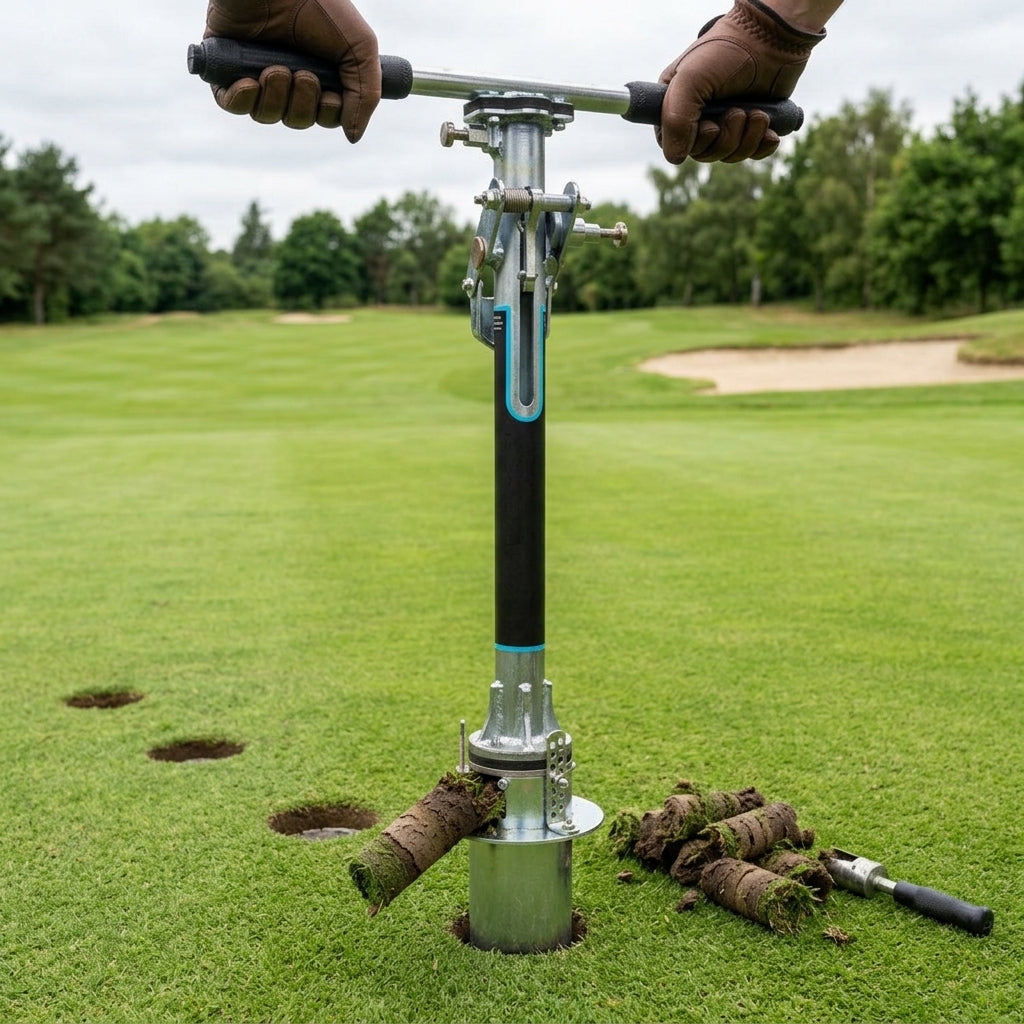

Golf Hole Cutter with Ergonomic Grip

This golf hole cutter, supplied with a sand blade, is a lighter and easier-to-handle hole cutter for professional golf course maintenance. Its ergonomic, custom-moulded anti-vibration hand grips give the operator a more precise feel while still holding firm as the unit is driven into the ground.

Key Features

• Lighter internal alloy materials – less weight, so easier to handle
• Replaceable torque pins – improved reliability and simpler maintenance
• New detent ball system – an upgraded top handle pin mechanism
• New rubber grips – better ergonomics and operator comfort
• Improved manufacturing – every component is produced in-house on state-of-the-art CNC machinery
• Built-in spirit level – helps keep holes perfectly vertical
• Integrated slide hammer – uses the weight of the tool itself for efficient cutting
• Easy ratchet mechanism – 50% reduction in back strain
• Depth control – adjustable in 1/4 inch or 6mm increments
• Anti-vibration grips – custom moulded for extra comfort
• Auto-locking handle – balanced so the tool carries straight
• Metric/imperial depth markers – clear depth readings

How to Use

Cutting process

1. Release the top pin, keeping an eye on the built-in spirit level
2. Raise the tool and use its weight as a slide hammer
3. Guide the downward stroke to drive the blade into the ground
4. Repeat until the required depth is reached
5. Re-engage the top pin
6. Twist the tool gently from side to side
7. Lift straight up to remove a clean core

Troubleshooting

• Hard to penetrate: check the blade is sharp, check the soil conditions and make sure the correct technique is being used
• Uneven cuts: check the spirit level, confirm the tool is vertical and keep the pressure consistent
• Difficult extraction: use the full length of the handle, engage the ratchet mechanism correctly and check the soil conditions

Applications

• Professional golf course maintenance – cutting and changing holes on greens

Specifications

• Type: golf hole cutter with sand blade
• Depth adjustment: 1/4 inch or 6mm increments
• Depth markers: metric and imperial
• Grips: custom-moulded anti-vibration rubber hand grips
• Assembly: minimal assembly required
• Maintenance: annual service
• Recommended use: professional golf course maintenance

Notes

• Safety: follow correct lifting and operating procedures when using the cutter.
