Irrigation Sprinkler Kit 19mm & 12.5mm Inlet
SKU TCP1178
Overview

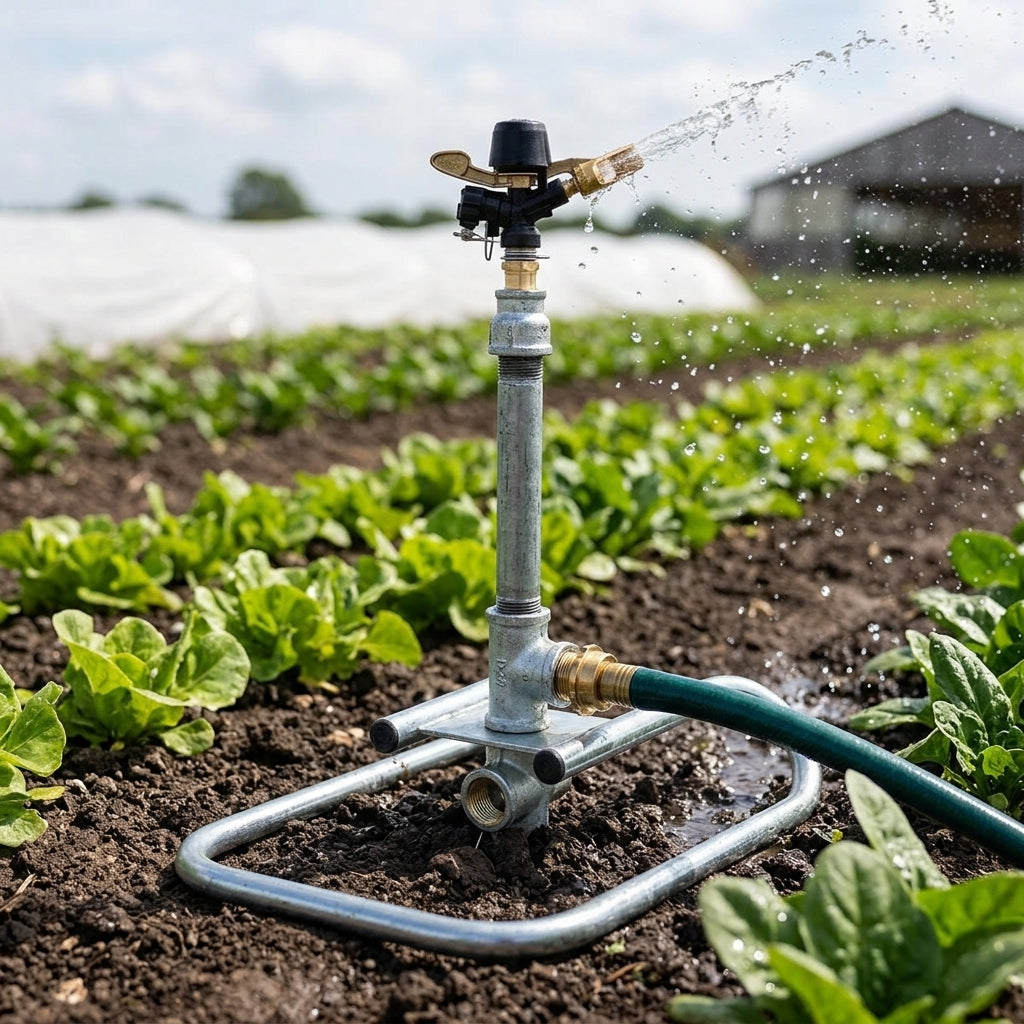

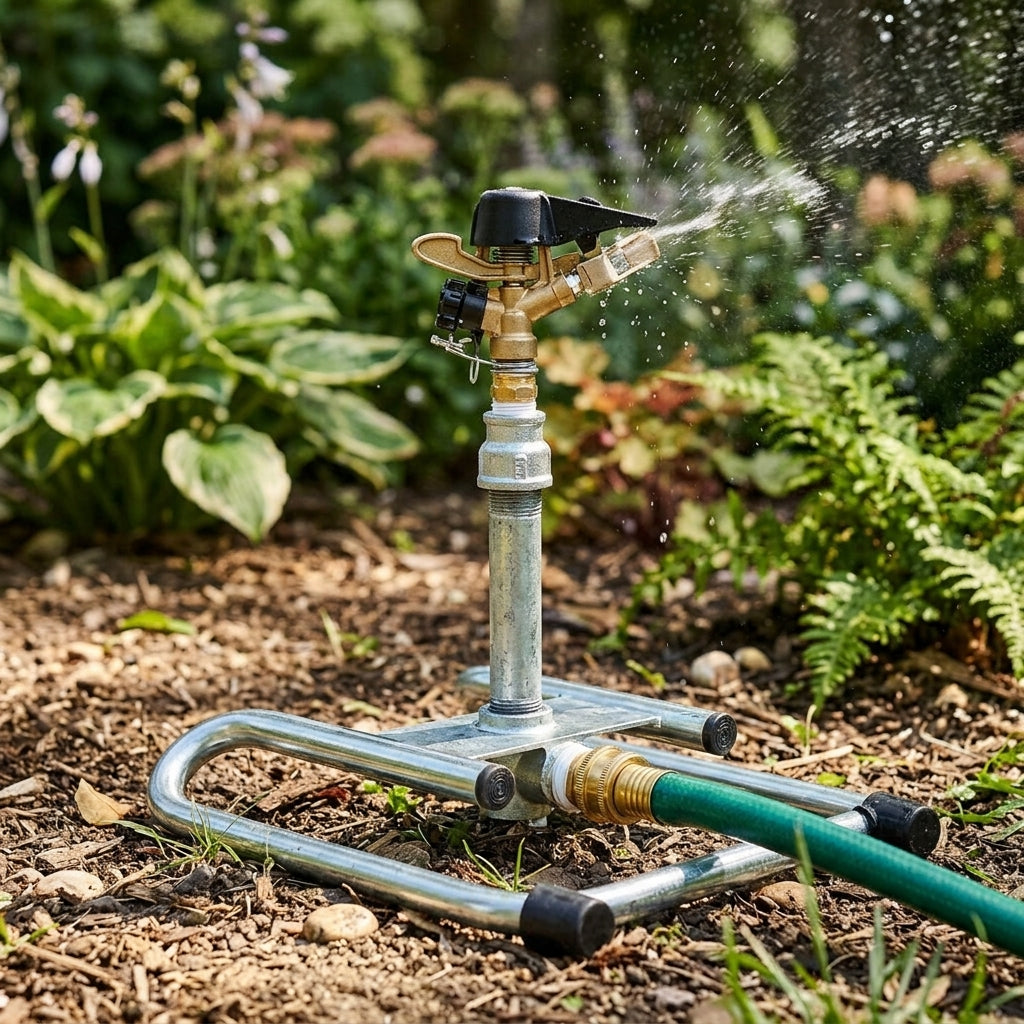

A professional irrigation sprinkler kit with an impact sprinkler head that can be set to water a full circle or a part circle as needed. The sprinkler and riser sit on a sled base, so the unit is easy to move around, making it a useful addition to an existing irrigation system for targeting water on a specific area, or a standalone sprinkler wherever it is needed.
Key Features
- Impact sprinkler head adjustable for full or part circle watering
- Portable sled base carrying the sprinkler and riser
- Works alongside existing irrigation systems to focus water on a particular area, or on its own
- Offered in two sizes to match existing irrigation equipment and output needs
- Standard model: 12.5 mm inlet, operates at 2-4 bar, coverage of 18-28 m
- Superior model: 19 mm inlet, operates at 2.5-4.5 bar, dome style impact sprinkler head with coverage of 25-28 m
- Supplied in kit form for safe transport; assembly is quick and simple
- Free roll of PTFE tape included for friction-free connections and a watertight seal
How to Use
- Assemble the kit, applying the supplied PTFE tape to give friction-free connections and a watertight seal.
- Connect to your hose using a hose tail fitting and a hose clip (both required, not included).
- Adjust the impact sprinkler head to water a full or part circle, and position the sled base over the area to be irrigated.
Applications
- Adding targeted watering to an existing irrigation system
- Standalone irrigation wherever it is required
Specifications
Product Components
| Standard (12.5 mm inlet) | Superior (19 mm inlet) | |
|---|---|---|
| Base | Sled style Zinc plated tubular steel |
Sled style Zinc plated tubular steel |
| Riser | 30 cm height 12.5 mm bore Galvanised steel |
30 cm height 19 mm bore Galvanised steel |
| Sprinkler head | Standard part circle sprinkler head | Dome style part circle sprinkler head |
| Hose connection | 12.5 mm coupling | 19 mm coupling |
Performance
| Standard Minimum | Standard Maximum | Superior Minimum | Superior Maximum | |
|---|---|---|---|---|
| Pressure | 2 bar | 4 bar | 2.5 bar | 4.5 bar |
| Flow rate | 0.46 m³ / h | 1.18 m³ / h | 0.69 m³ / h | 1.89 m³ / h |
| Coverage diameter | 18 m | 28 m | 25 m | 28 m |
What's Included
- Impact sprinkler head (standard or dome style, depending on model)
- 30 cm galvanised steel riser
- Zinc plated tubular steel sled base
- Hose coupling (12.5 mm or 19 mm)
- Roll of PTFE tape (free)
Notes
- A hose tail fitting and a hose clip are needed to connect the kit to your hose; these are not included and are sold separately.
