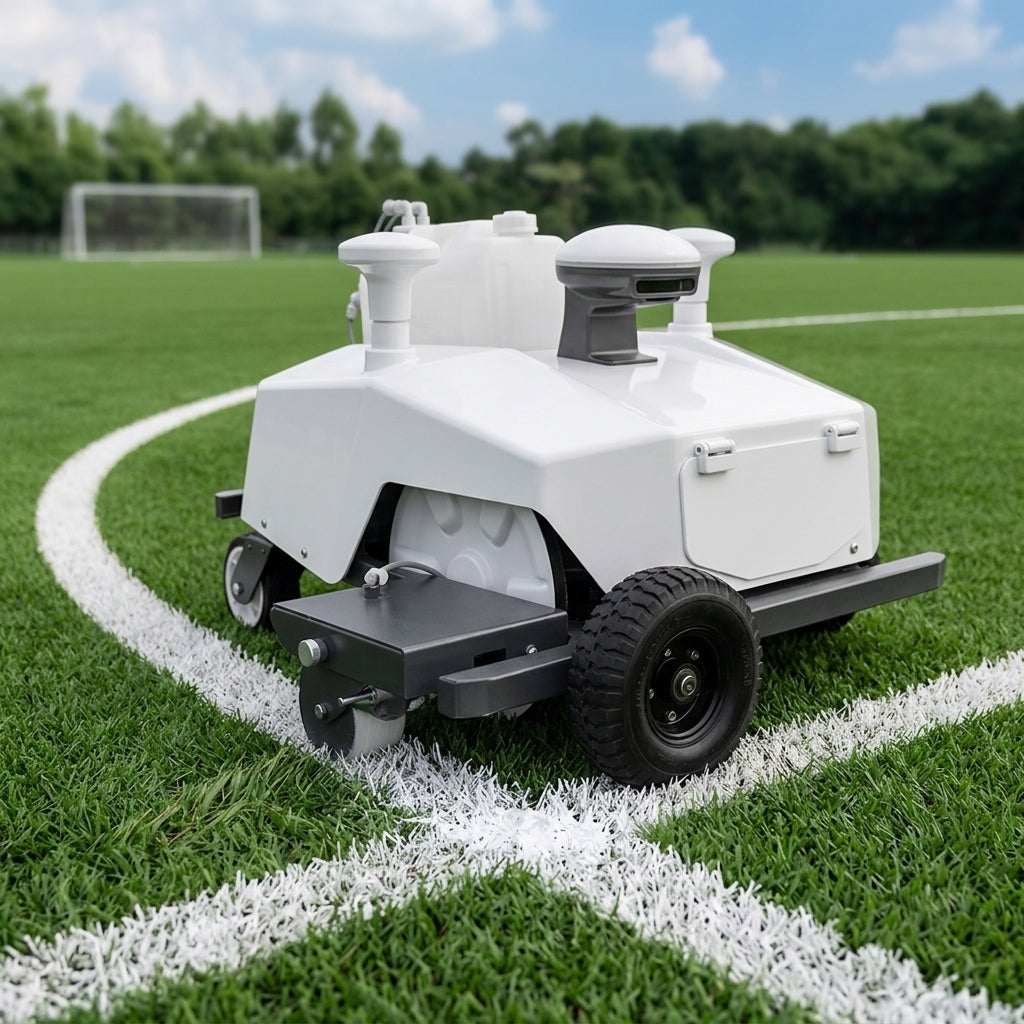

GNSS Robotic Line Marker with Optional Laser Kit

This robotic line marker is a next-generation, intelligent line-marking robot built for grounds teams from grassroots to professional level. It is designed for centimetre-level accuracy, using dual industrial-grade GNSS positioning systems together with a local base station for consistently precise lines. Where GPS signals may be weak, such as pitches surrounded by trees or stands, the optional laser kit keeps marking reliable.

Key Features

• Centimetre-level marking accuracy
• Dual industrial-grade GNSS positioning systems with a local base station
• Optional laser kit for difficult sites where GPS signals may struggle
• Standard 0.5 kWh battery marks up to eight full-size (11v11) football pitches on one charge
• Optional 1 kWh battery doubles coverage to 16 pitches
• Fast-swap battery system for continuous 24/7 operation, even on busy match days
• Integrated cloud-based software with real-time monitoring, automatic field switching and fleet management for multiple units
• Controlled through a remote control app
• Standard tablet included for easy setup and operation
• No ongoing software subscriptions
• Portable and easy to transport
• Quick-change paint refills with a dedicated independent filling port
• Removable structure for simple cleaning, servicing and maintenance

Applications

With optional attachments, including a portable handheld point marker for fast field mapping and the laser kit for precision in complex surroundings, this robotic line marker suits a wide range of uses:

• Football and rugby pitches
• Multi-sport facilities
• Athletics tracks
• Training grounds

Specifications

• Type: GNSS robotic line marker
• Positioning: dual industrial-grade GNSS with local base station
• Standard battery: 0.5 kWh (up to 8 full-size 11v11 football pitches per charge)
• Optional battery: 1 kWh (up to 16 pitches per charge)
• Battery system: fast-swap, for 24/7 operation
• Software: integrated cloud-based, no subscription

What's Included

• Robotic line marker
• Standard tablet

Notes

• The laser kit, 1 kWh battery and handheld point marker are optional extras.
