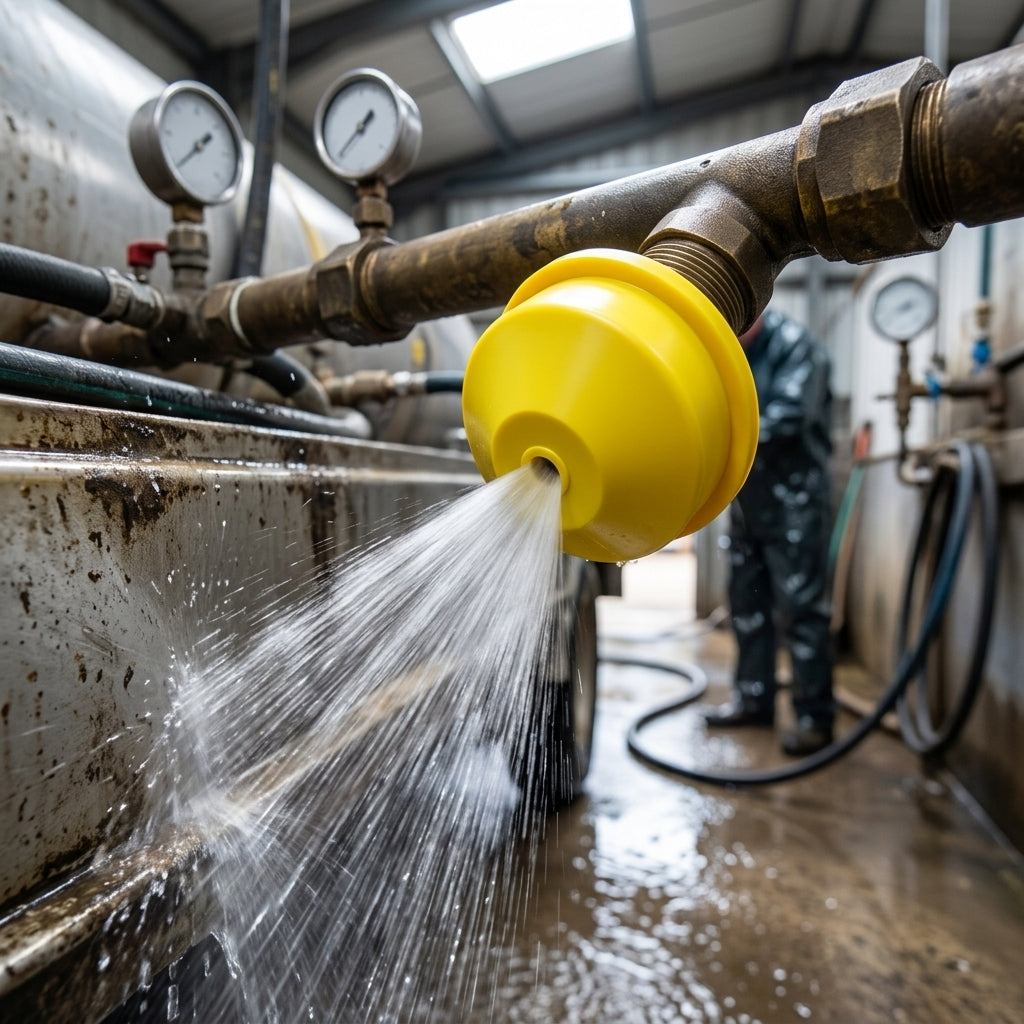

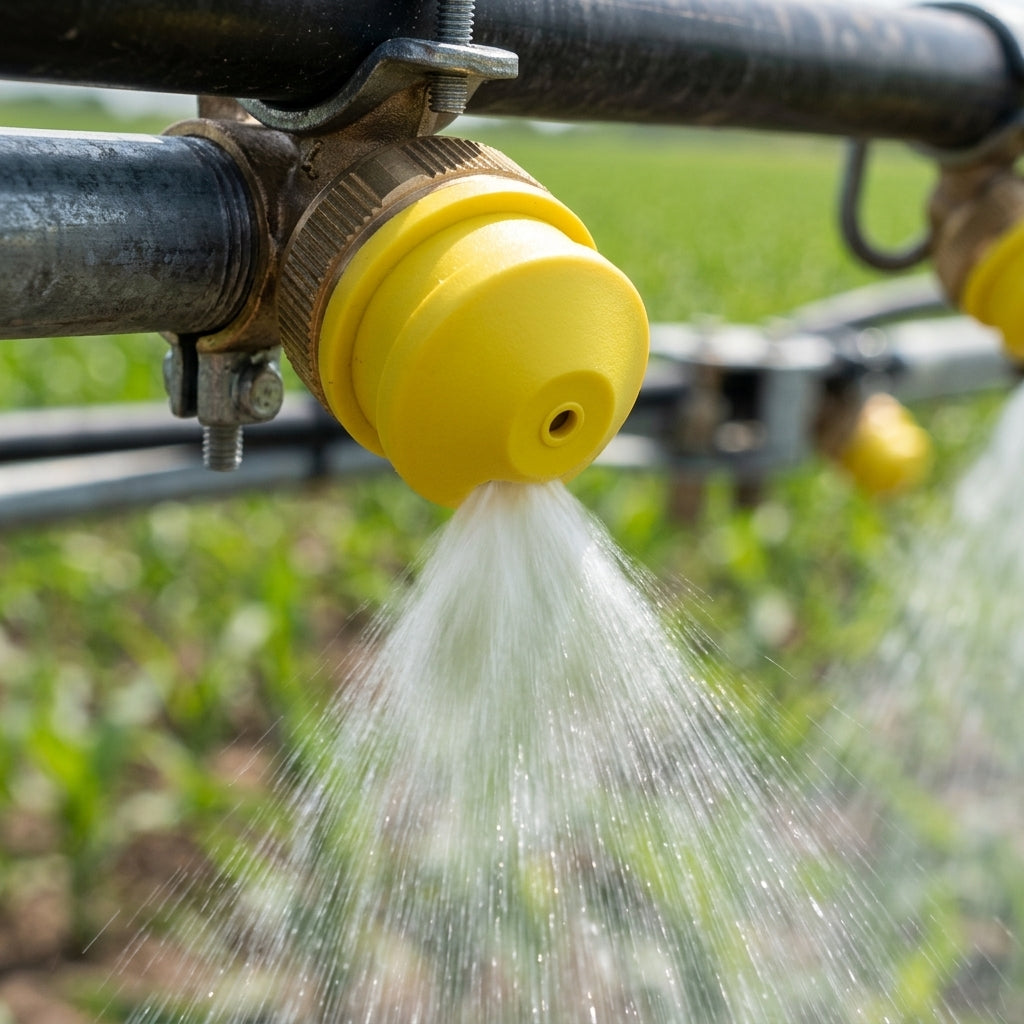

Solid Cone Nozzle - Full Cone Spray Pattern
SKU TCP774
Overview
A yellow 02 solid cone nozzle for knapsack and boom sprayers. It produces coarse droplets in a full, circular cone pattern, making it well suited to soil-acting or residual herbicides and to spot spraying herbicides.
Key Features
- Full cone, circular spray pattern with coarse droplets
- Full cone pattern gives excellent coverage
- Coarse droplets make the spray resistant to drift
- Swirl technology
- 80° spray angle
- Works across a 1 - 10 Bar pressure range
Applications
- Residual (soil-acting) herbicides
- Spot treatment herbicides
- Insecticides and fungicides
Specifications
| Product Overview | |
|---|---|
| Common Use | Residual Herbicides |
| Applicator | Knapsack/Boom Mounted |
| Technology | Swirl |
| Spray Angle | 80° |
| Pattern | Full Cone |
| Pressure Range | 1 - 10 Bar |
Nozzle Details
| Nozzle Size | Use | Application Equipment | Spray Angle | Pressure (Bar) | Droplet Size | Flow Rate (L/m) | Application Rate (L/ha) |
|---|---|---|---|---|---|---|---|
| 02 (yellow) | Residual Herbicides, Spot Treatment Herbicides, Insecticides & Fungicides | Knapsack | 80° | 1 | Coarse | 0.7 | 59 |
| 5 | Coarse | 1.7 | 132 | ||||
| 10 | Coarse | 2.3 | 187 |
Notes
- Droplet size and flow rate are quoted at 1 bar pressure.
- Application rates are quoted at a forward speed of 15 km/hour.
More like this
More sprayer parts & nozzles

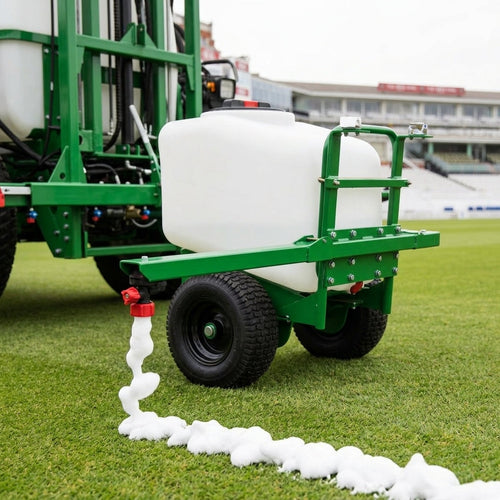

Foam Bout Marker for Self Propelled Pedestrian Sprayers
