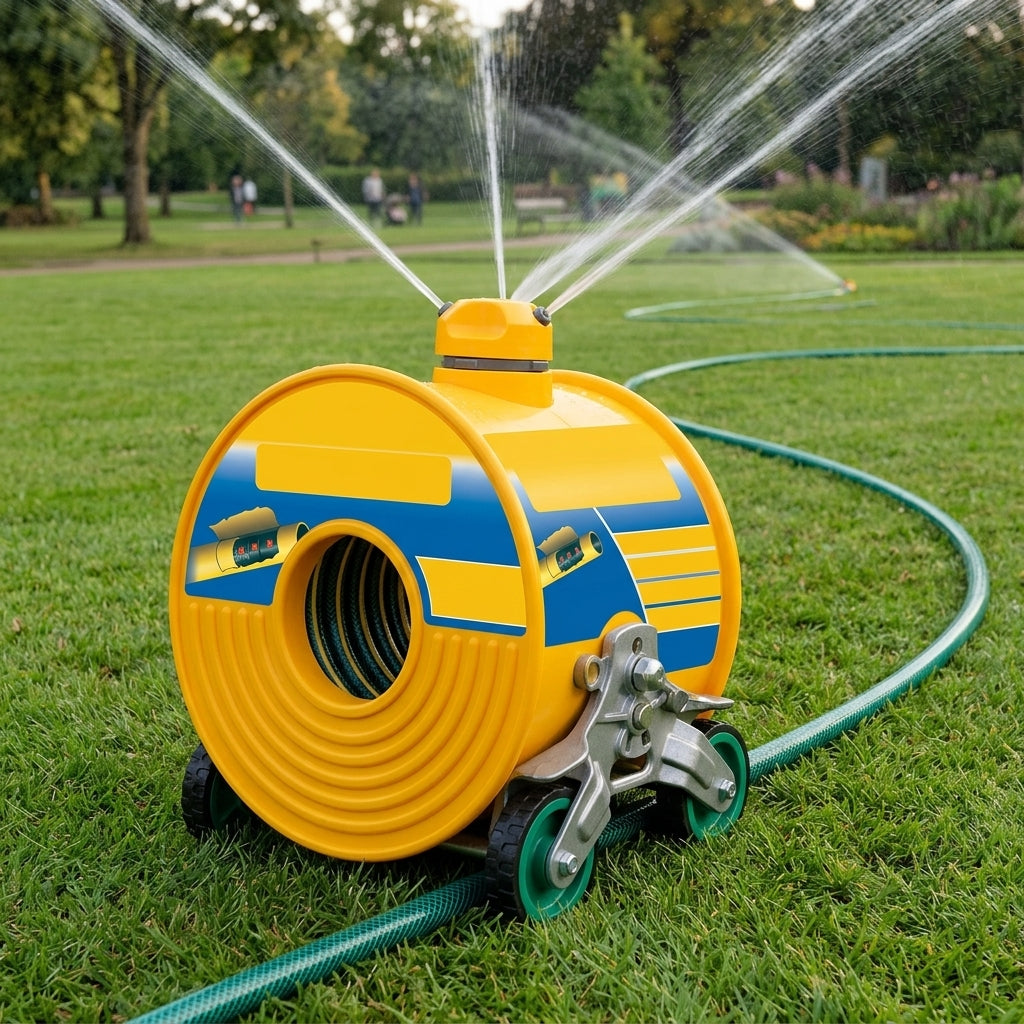

Travelling Sprinkler for Portable Irrigation

This is a travelling sprinkler that begins moving as soon as the water supply is switched on, pulling itself slowly across the surface along a steel cable laid out beforehand. When it reaches the end of the set area, it shuts off the water flow and stops irrigating automatically.

Key Features

• Multiuse: the part-circle sprinkler lets the operator set the area to be watered, for example to the right or left of the cart, or any sector of a circle
• Variable water flow: infinite speed regulation allows the water flow to be adjusted to suit each job
• Uniform water distribution: the accurate sprinkler and constant travel speed give optimal water distribution
• Maintenance free: sealed gears with a very low friction factor make it practically maintenance free
• Convenience: compact, self-contained design that is easy for the user to operate
• Lawn friendly: travels well over dry lawns and estate areas
• Automatic stop of water flow and irrigation at the end of the designated area

How to Use

• Lay out the steel cable along the area to be irrigated.
• Connect a 25mm (1 Inch) water supply hose with a minimum length of 60m; the hose is drawn along behind the cart.
• Turn on the water supply and the machine will start moving.
• A minimum of 6 BAR water pressure is required at the hose.

Applications

• Efficient, economical watering of areas from 1/4 acre (1000m²) to 2 acre (8000m²)
• Athletic fields
• Cemeteries
• Estates where an underground irrigation system is impractical

Specifications

• Travelling speed: 10 to 20 m/h
• Operating pressure: min 3,5 bar at unit
• Required pressure at hose: minimum 6 BAR
• Water consumption: 3,0 m³/h
• Width of irrigation: 28 to 36 m
• Length of irrigation: 120 m
• Material: Alu, brass, ABS
• Overall measurements: 77 x 47 x 40 cm
• Total weight: 33,0 kg
• Supply hose: 25mm (1 Inch), minimum 60m

Notes

• The water supply hose is not included with the machine.
