Wireless Weather Station with Solar Sensor - Local Data Recording

This wireless standard weather station with solar sensor is supplied with a live data hub, giving local data recording over your site's wireless or ethernet connection. It measures wind, rainfall, temperature, humidity and solar radiation, and calculates evapotranspiration for turf management decisions.

Key Features

• Anemometer measuring wind speed and direction
• Rain gauge with 0.2mm per tip resolution
• Temperature and humidity sensor
• Solar radiation sensor (W/M2) with E.T (evapotranspiration)
• The live data hub sends weather station and sensor data to the cloud, viewable on a dedicated web portal and mobile device apps
• 1 year subscription: weather data is stored in the cloud and live readings can be viewed on any connected device
• The subscription gives access to current conditions, historical data, bulletins, map, chart and data

How to Use

Package Overview (Local Wireless or Ethernet)

• Place the live data hub inside a building or office and connect it to the local wireless or ethernet network.
• The weather station must sit within wireless range of the hub: up to 300mtr line of sight. Buildings, walls, trees and similar obstructions will reduce this range.

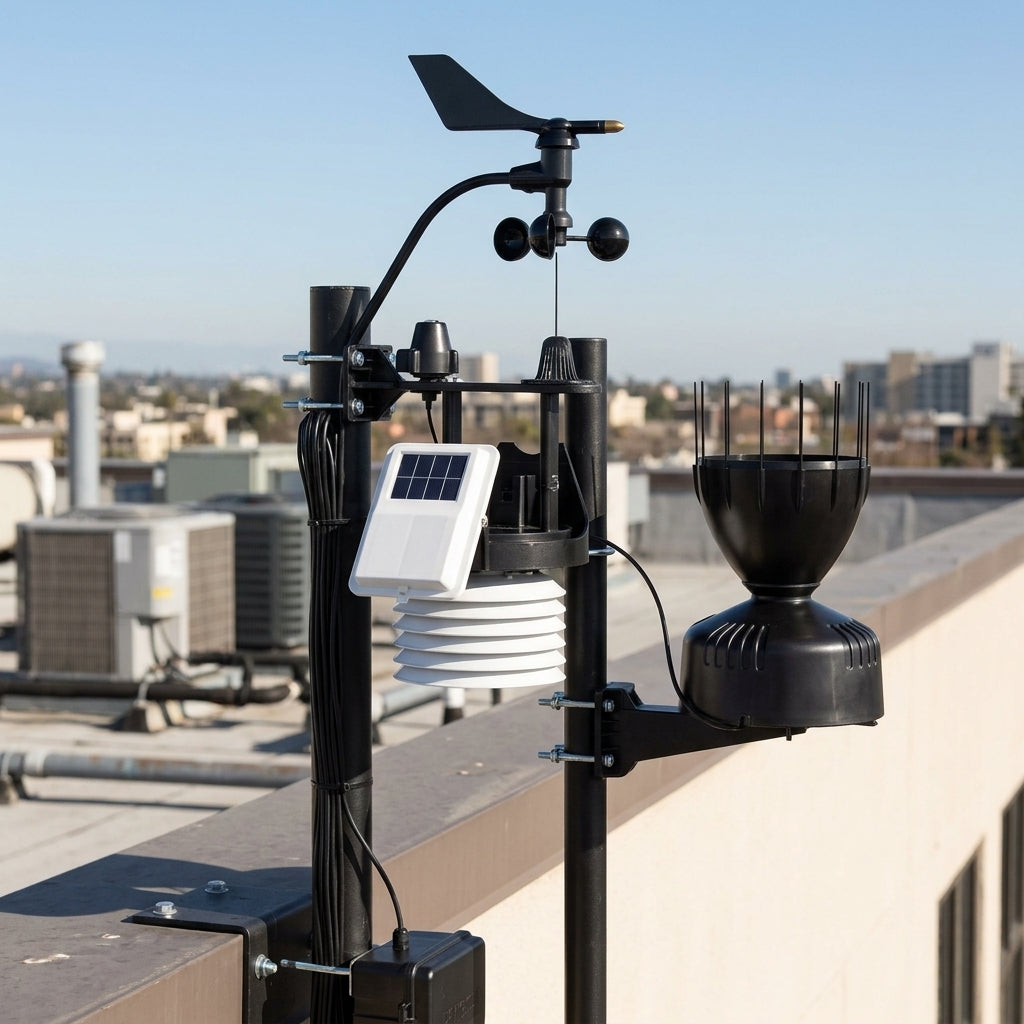

• Siting is important: avoid mounting the weather station (or any connected sensors) on a building or roofline. An open, flat position is best, so that readings reflect the conditions of the areas you want to monitor.

Applications

Data the weather station can generate, and what it is used for:

• E.T (Evapotranspiration) and rainfall data - soil moisture status and plant stress (irrigation requirement - soil moisture deficit / surplus)
• Minimum and maximum air temperature - grass and insect growth model (daily growth degree days - daily growth potential)
• Leaf moisture status (if sensor fitted) - dew intensity for spraying, dew removal and disease pressure
• Relative humidity and dewpoint - disease activity data (Dollar Spot Model - real-time disease pressure indicator)
• Rainfall data - mm per hour and time of maximum rainfall - flooding events, bunker wash-outs on golf courses, etc.
• Wind data, maximum gust and time of maximum gust - spray windows, tree fall incidents, health and safety

Specifications

• Package: Local Data Recording
• Connection: live data hub via local wireless or ethernet
• Wireless range: maximum 300mtr line of sight
• Rain gauge: 0.2mm per tip
• Solar radiation: W/M2
• Subscription: 1 Year

What's Included

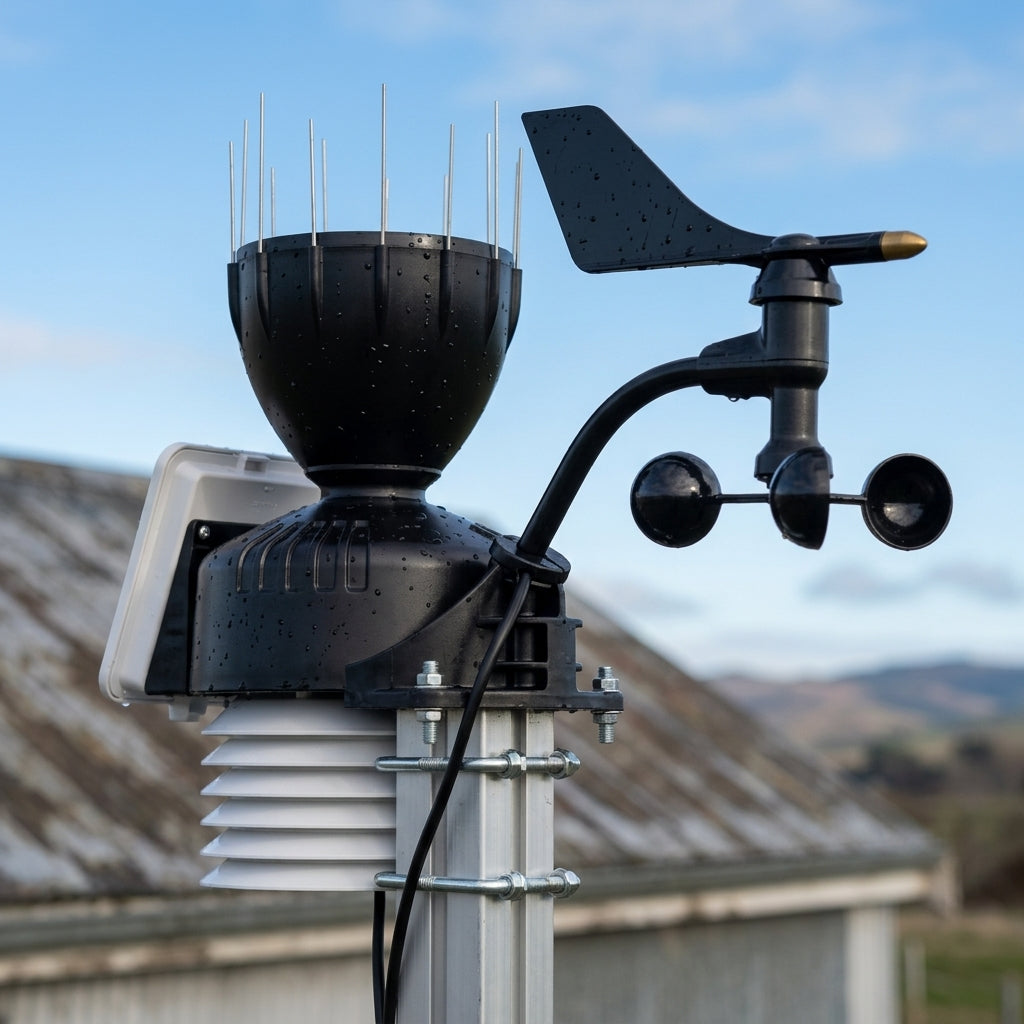

• Wireless STD Weather Station with anemometer, 0.2mm per tip rain gauge, temperature and humidity sensor, and solar radiation sensor with E.T
• Live data hub
• Subscription - 1 Year

Notes

Optional extras available for this local data recording package (sold separately):

• Agronomic Reporting Software - dedicated agronomic reporting software and data reporting package, covering:
  • Climatic statistics (daily / monthly)
  • Agronomic reporting
  • GDD (Growing Degree Days) 6deg base and 0deg base
  • GP (Grow Potential)
  • Dollar Spot Probability
  • SMS (Soil Moisture Surplus) and SMD (Soil Moisture Deficit)
  • T max, T min, T mean
  • RH mean
  • Total Rain, Rain Max
  • Total ET
• Wireless Leaf and Soil Moisture/Temperature Station - adding this transmitter to the package lets a leaf wetness sensor and soil temperature sensor be connected.
• Leaf Wetness Sensor - a leaf moisture sensor that accurately reflects leaf moisture / dew levels on the grass leaf, a key element of disease forecasting. Readings run from 0 - 15, where 0 = dry and 15 = saturated.
• Temperature Probe - single depth temperature probe.
• Mounting Tripod with Ground Spikes
• Mounting Pole (1mtr)
