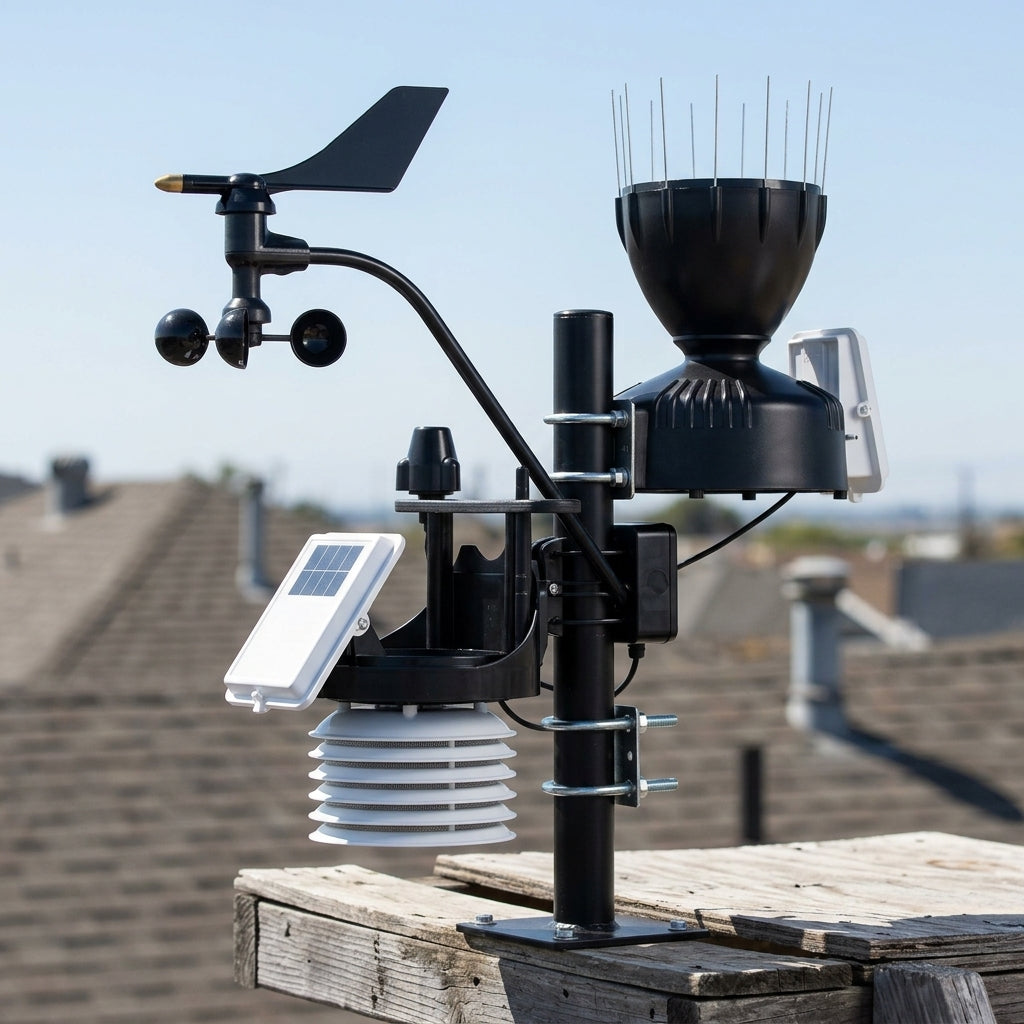

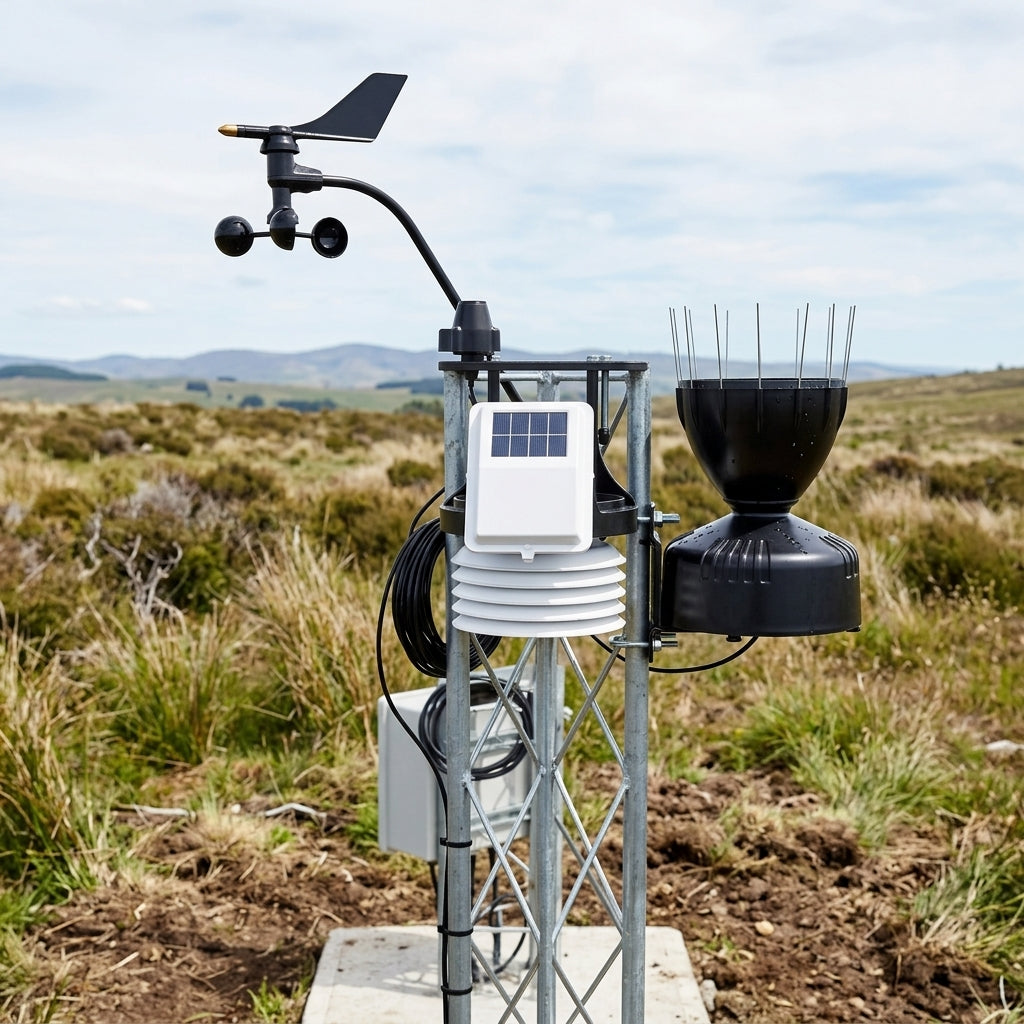

Wireless Weather Station with Solar Sensor - Remote Data

This wireless standard weather station with solar sensor (remote data package) provides remote data through a self-powered cellular gateway with a pre-installed SIM. The gateway links to the wireless weather station and to optional standalone sensor nodes, each able to take up to 4 additional sensors, and several nodes can be added to give full sensor coverage across a golf course, sports arena or other large site.

Key Features

• Anemometer measuring wind speed and direction
• Rain gauge with 0.2mm per tip resolution
• Temperature and humidity sensor
• Solar radiation sensor (W/M2) with E.T (evapotranspiration)
• Self-powered LTE cellular gateway with SIM pre-installed
• 15 Min Gateway Plan, with updates to the cloud and mobile apps
• Expandable with optional sensor nodes (up to 4 additional sensors per node); multiple nodes can be used for full coverage of large sites

How to Use

• Siting is important: avoid mounting the weather station (or any connected sensors) on a building or roofline. An open, flat position is best, so that readings reflect the conditions of the areas you want to monitor.

Applications

Data the weather station can generate, and what it is used for:

• E.T (Evapotranspiration) and rainfall data - soil moisture status and plant stress (irrigation requirement - soil moisture deficit / surplus)
• Minimum and maximum air temperature - grass and insect growth model (daily growth degree days - daily growth potential)
• Leaf moisture status (if sensor fitted) - dew intensity for spraying, dew removal and disease pressure
• Relative humidity and dewpoint - disease activity data (Dollar Spot Model - real-time disease pressure indicator)
• Rainfall data - mm per hour and time of maximum rainfall - flooding events, bunker wash-outs on golf courses, etc.
• Wind data, maximum gust and time of maximum gust - spray windows, tree fall incidents, health and safety

Suitable for golf courses, sports arenas and large site locations.

Specifications

• Package: Remote Data
• Gateway: LTE cellular, self-powered, SIM pre-installed
• Gateway plan: 15 Min Gateway Plan
• Subscription: Annual Gateway Subscription - 1 year
• Rain gauge: 0.2mm per tip
• Solar radiation: W/M2

What's Included

• Wireless STD Weather Station with anemometer, 0.2mm per tip rain gauge, temperature and humidity sensor, and solar radiation sensor with E.T
• LTE Cellular Gateway x 1
• 15 Min Gateway Plan (updates to the cloud and mobile apps)
• Annual Gateway Subscription - 1 year

Notes

Optional extras available for this remote data package (sold separately):

• Agronomic Reporting Software - dedicated agronomic reporting software and data reporting package, covering:
  • Climatic statistics (daily / monthly)
  • Agronomic reporting
  • GDD (Growing Degree Days) 6deg base and 0deg base
  • GP (Grow Potential)
  • Dollar Spot Probability
  • SMS (Soil Moisture Surplus) and SMD (Soil Moisture Deficit)
  • T max, T min, T mean
  • RH mean
  • Total Rain, Rain Max
  • Total ET
• Sensor Node - self-powered node with 300mtr line of sight to the LTE Gateway (extendable up to 3km with a Long Range Aerial, available on enquiry); supports 4 sensors.
• Leaf Wetness Sensor - a leaf moisture sensor that accurately reflects leaf moisture / dew levels on the grass leaf, a key element of disease forecasting. Readings run from 0 - 15, where 0 = dry and 15 = saturated.
• PAR Radiation Sensor - Photosynthetic Active Radiation and DLI (Daylight Light Interval) sensor.
• Soil Moisture / Temperature / EC Sensor - Single Depth 5M Cable - single depth combined soil moisture, soil temperature and salinity sensor.
• Soil Moisture / Temperature / EC Sensor - Multi Depth 5M Cable / Profile 30cm - 30 or 60cm multi-depth soil moisture, soil temperature and salinity sensor, reading every 10cms through the profile.
• Mounting Tripod with Ground Spikes
• Mounting Pole (1mtr)
